1.3.1 Définition matériel

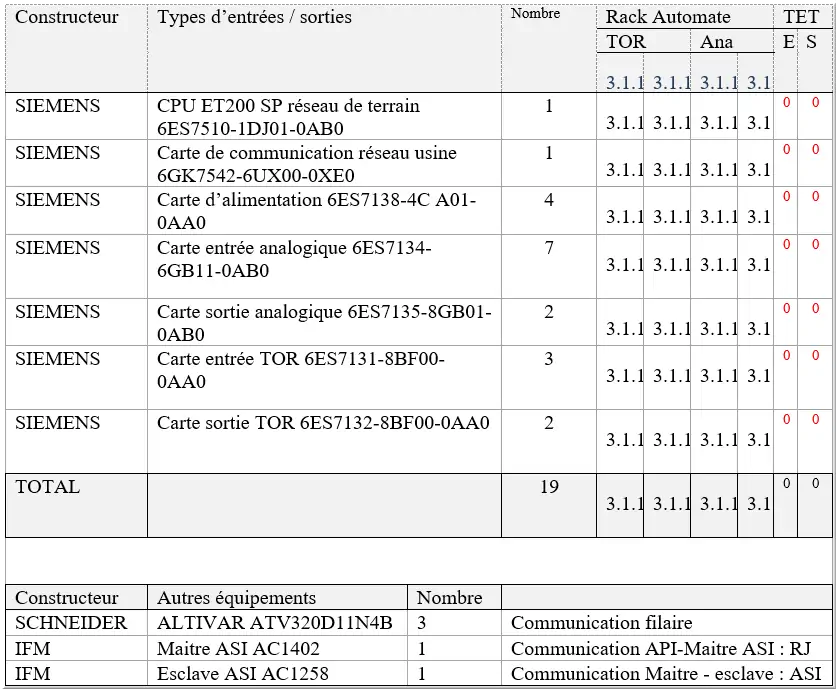

Figure 13 : liste des constructeurs
1.3.2 Architecture

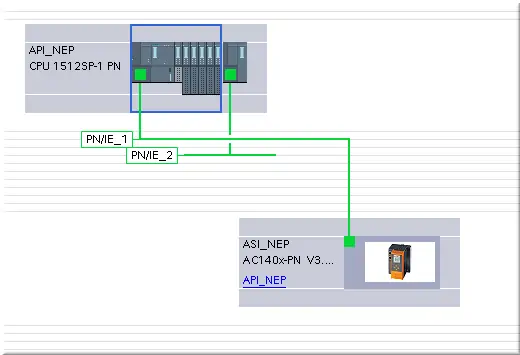

Figure 14 : Architecture réseau API ASI
Adressage IP des éléments du système :
Pour l’API :
- PN/IE_2 : 192.158.15.144 en réseau usine
- PN/IE_1 : 200.200.155.1 en réseau de terrain
Pour l’ASI :
- PN/IE_1 : 200.200.155.2
1.3.3 IGE E/S Tableau des entrées sorties
| Nom | Module | @ physique | Mnémonique E/S | Désignation E/S |
|---|---|---|---|---|
| API_NEP | DI0001 | DI0001.00 | DL1_RDM | POMPE ENVOI NEP LIGNE 1 |
| API_NEP | DI0001 | DI0001.01 | DL2_RDM | POMPE ENVOI NEP LIGNE 2 |
| API_NEP | DI0001 | DI0001.02 | DL3_RDM | POMPE ENVOI NEP LIGNE 3 |
| API_NEP | DI0001 | DI0001.03 | PRA_RDM | POMPE DE RECHAUFFAGE ACIDE |
| API_NEP | DI0001 | DI0001.04 | PRS_RDM | POMPE DE RECHAUFFAGE SOUDE |
| API_NEP | DI0001 | DI0001.05 | QF143_RDM | RESERVE QF143 |
| API_NEP | DI0001 | DI0001.06 | QF144_RDM | RESERVE QF144 |
| API_NEP | DI0001 | DI0001.07 | QF151_RDM | RESERVE QF151 |
| API_NEP | DI0001 | DI0001.08 | QF152_RDM | RESERVE QF152 |
| API_NEP | DI0001 | DI0001.09 | RESERVE_DI1001_09 | |
| API_NEP | DI0001 | DI0001.10 | RESERVE_DI1001_10 | |
| API_NEP | DI0001 | DI0001.11 | RESERVE_DI1001_11 | |
| API_NEP | DI0001 | DI0001.12 | RESERVE_DI1001_12 | |
| API_NEP | DI0001 | DI0001.13 | RESERVE_DI1001_13 | |
| API_NEP | DI0001 | DI0001.14 | REARM | REARMEMENT |
| API_NEP | DI0001 | DI0001.15 | AU | ARRET D'URGENCE |
| API_NEP | DI0002 | DI0002.00 | QT_RL1 | COMPTEUR QT.RL1 |
| API_NEP | DI0002 | DI0002.01 | QT_RL2 | COMPTEUR QT.RL2 |
| API_NEP | DI0002 | DI0002.02 | QT_RL3 | COMPTEUR QT.RL3 |
| API_NEP | DI0002 | DI0002.03 | QT_DL1 | COMPTEUR QT.DL1 |
| API_NEP | DI0002 | DI0002.04 | QT_DL2 | COMPTEUR QT.DL2 |
| API_NEP | DI0002 | DI0002.05 | QT_DL3 | COMPTEUR QT.DL3 |
| API_NEP | DI0002 | DI0002.06 | QT_EAU_NEP | COMPTEUR QT.EAU.NEP |
| API_NEP | DI0002 | DI0002.07 | QT_RESERVE | COMPTEUR RESERVE |
| API_NEP | DI0002 | DI0002.08 | LSL_501 | NIVEAU BAS 501 |
| API_NEP | DI0002 | DI0002.09 | LSH_501 | NIVEAU HAUT 501 |
| API_NEP | DI0002 | DI0002.10 | LSL_502 | NIVEAU BAS 502 |
| API_NEP | DI0002 | DI0002.11 | LSH_502 | NIVEAU HAUT 502 |
| API_NEP | DI0002 | DI0002.12 | LSL_503 | NIVEAU BAS 503 |
| API_NEP | DI0002 | DI0002.13 | LSH_503 | NIVEAU HAUT 503 |
| API_NEP | DI0002 | DI0002.14 | TRH_501 | TROU D'HOMME 501 |
| API_NEP | DI0002 | DI0002.15 | TRH_502 | TROU D'HOMME 502 |
| API_NEP | DI0003 | DI0003.00 | TRH_503 | TROU D'HOMME 503 |
| API_NEP | DI0003 | DI0003.01 | RESERVE_DI1003_01 | |
| API_NEP | DI0003 | DI0003.02 | RESERVE_DI1003_02 | |
| API_NEP | DI0003 | DI0003.03 | RESERVE_DI1003_03 | |
| API_NEP | DI0003 | DI0003.04 | RESERVE_DI1003_04 | |
| API_NEP | DI0003 | DI0003.05 | RESERVE_DI1003_05 | |
| API_NEP | DI0003 | DI0003.06 | RESERVE_DI1003_06 | |
| API_NEP | DI0003 | DI0003.07 | RESERVE_DI1003_07 | |
| API_NEP | DI0003 | DI0003.08 | RESERVE_DI1003_08 | |
| API_NEP | DI0003 | DI0003.09 | RESERVE_DI1003_09 | |
| API_NEP | DI0003 | DI0003.10 | RESERVE_DI1003_10 | |
| API_NEP | DI0003 | DI0003.11 | RESERVE_DI1003_11 | |
| API_NEP | DI0003 | DI0003.12 | RESERVE_DI1003_12 | |
| API_NEP | DI0003 | DI0003.13 | RESERVE_DI1003_13 | |
| API_NEP | DI0003 | DI0003.14 | RESERVE_DI1003_14 | |
| API_NEP | DI0003 | DI0003.15 | RESERVE_DI1003_15 | |
| API_NEP | AI0001 | AI0001.00 | EQT_RL1 | DEBITMETRE QT.RL1 |
| API_NEP | AI0001 | AI0001.01 | QT_RL2 | DEBITMETRE QT.RL2 |
| API_NEP | AI0001 | AI0001.02 | QT_RL3 | DEBITMETRE QT.RL3 |
| API_NEP | AI0001 | AI0001.03 | QT_DL1 | DEBITMETRE QT.DL1 |
| API_NEP | AI0002 | AI0002.00 | QT_DL2 | DEBITMETRE QT.DL2 |
| API_NEP | AI0002 | AI0002.01 | QT_DL3 | DEBITMETRE QT.DL3 |
| API_NEP | AI0002 | AI0002.02 | QT_EAU_NEP | DEBITMETRE QT.EAU.NEP |
| API_NEP | AI0002 | AI0002.03 | RESERVE_AI1002_03 | |
| API_NEP | AI0003 | AI0003.00 | CT_RL1 | CONCENTRATION CT.RL1 |
| API_NEP | AI0003 | AI0003.01 | TT_RL1 | TEMPERATURE TT.RL1 |
| API_NEP | AI0003 | AI0003.02 | CT_RL2 | CONCENTRATION CT.RL2 |
| API_NEP | AI0003 | AI0003.03 | TT_RL2 | TEMPERATURE TT.RL2 |
| API_NEP | AI0004 | AI0004.00 | CT_RL3 | CONCENTRATION CT.RL3 |
| API_NEP | AI0004 | AI0004.01 | TT_RL3 | TEMPERATURE TT.RL3 |
| API_NEP | AI0004 | AI0004.02 | CT_NEP | CONCENTRATION CT.NEP |
| API_NEP | AI0004 | AI0004.03 | RESERVE_AI1004_03 | |
| API_NEP | AI0005 | AI0005.00 | CT_PRA | CONCENTRATION CT.PRA |
| API_NEP | AI0005 | AI0005.01 | TT_PRA | TEMPERATURE TT.PRA |
| API_NEP | AI0005 | AI0005.02 | CT_PRS | CONCENTRATION CT.PRS |
| API_NEP | AI0005 | AI0005.03 | TT_PRS | TEMPERATURE TT.PRS |
| API_NEP | AI0006 | AI0006.00 | LT_501 | NIVEAU LT.501 |
| API_NEP | AI0006 | AI0006.01 | LT_502 | NIVEAU LT.502 |
| API_NEP | AI0006 | AI0006.02 | LT_503 | NIVEAU LT.503 |
| API_NEP | AI0006 | AI0006.03 | PT_DL1 | PRESSION PT.DL1 |
| API_NEP | AI0007 | AI0007.00 | PT_DL2 | PRESSION PT.DL2 |
| API_NEP | AI0007 | AI0007.01 | PT_DL3 | PRESSION PT.DL3 |
| API_NEP | AI0007 | AI0007.02 | TT_502 | TEMPERATURE TT.502 |
| API_NEP | AI0007 | AI0007.03 | TT_503 | TEMPERATURE TT.503 |
| API_NEP | DO0001 | DO0001.00 | DL1 | POMPE ENVOI NEP LIGNE 1 |
| API_NEP | DO0001 | DO0001.01 | DL2 | POMPE ENVOI NEP LIGNE 2 |
| API_NEP | DO0001 | DO0001.02 | DL3 | POMPE ENVOI NEP LIGNE 3 |
| API_NEP | DO0001 | DO0001.03 | PRA | POMPE DE RECHAUFFAGE ACIDE |
| API_NEP | DO0001 | DO0001.04 | PRS | POMPE DE RECHAUFFAGE SOUDE |
| API_NEP | DO0001 | DO0001.05 | QF143 | RESERVE QF143 |
| API_NEP | DO0001 | DO0001.06 | QF144 | RESERVE QF144 |
| API_NEP | DO0001 | DO0001.07 | QF151 | RESERVE QF151 |
| API_NEP | DO0001 | DO0001.08 | QF152 | RESERVE QF152 |
| API_NEP | DO0001 | DO0001.09 | RESERVE_DO1001_09 | |
| API_NEP | DO0001 | DO0001.10 | RESERVE_DO1001_10 | |
| API_NEP | DO0001 | DO0001.11 | RESERVE_DO1001_11 | |
| API_NEP | DO0001 | DO0001.12 | RESERVE_DO1001_12 | |
| API_NEP | DO0001 | DO0001.13 | RESERVE_DO1001_13 | |
| API_NEP | DO0001 | DO0001.14 | VAA | VANNE RECIRCULATION ACIDE |
| API_NEP | DO0001 | DO0001.15 | VAS | VANNE RECIRCULATION SOUDE |
| API_NEP | DO0002 | DO0002.00 | RESERVE_DO1002_00 | |
| API_NEP | DO0002 | DO0002.01 | RESERVE_DO1002_01 | |
| API_NEP | DO0002 | DO0002.02 | RESERVE_DO1002_02 | |
| API_NEP | DO0002 | DO0002.03 | RESERVE_DO1002_03 | |
| API_NEP | DO0002 | DO0002.04 | RESERVE_DO1002_04 | |
| API_NEP | DO0002 | DO0002.05 | RESERVE_DO1002_05 | |
| API_NEP | DO0002 | DO0002.06 | RESERVE_DO1002_06 | |
| API_NEP | DO0002 | DO0002.07 | RESERVE_DO1002_07 | |
| API_NEP | DO0002 | DO0002.08 | RESERVE_DO1002_08 | |
| API_NEP | DO0002 | DO0002.09 | RESERVE_DO1002_09 | |
| API_NEP | DO0002 | DO0002.10 | RESERVE_DO1002_10 | |
| API_NEP | DO0002 | DO0002.11 | RESERVE_DO1002_11 | |
| API_NEP | DO0002 | DO0002.12 | RESERVE_DO1002_12 | |
| API_NEP | DO0002 | DO0002.13 | RESERVE_DO1002_13 | |
| API_NEP | DO0002 | DO0002.14 | RESERVE_DO1002_14 | |
| API_NEP | DO0002 | DO0002.15 | RESERVE_DO1002_15 | |
| API_NEP | AO0001 | AO0001.00 | DL1_CONS | POMPE ENVOI NEP LIGNE 1 |
| API_NEP | AO0001 | AO0001.01 | DL2_CONS | POMPE ENVOI NEP LIGNE 2 |
| API_NEP | AO0001 | AO0001.02 | DL3_CONS | POMPE ENVOI NEP LIGNE 3 |
| API_NEP | AO0001 | AO0001.03 | RESERVE_AO1001_03 | |
| API_NEP | AO0002 | AO0002.00 | VRA_CONS | VANNE MODULANTE RECIRCULATION ACIDE |
| API_NEP | AO0002 | AO0002.01 | VRS_CONS | VANNE MODULANTE RECIRCULATION SOUDE |
| API_NEP | AO0002 | AO0002.02 | RESERVE_AO1002_02 | |
| API_NEP | AO0002 | AO0002.03 | RESERVE_AO1002_03 |
